Binary Led watch DIY PIC - Can you see the time?

Binary Led watch DIY PIC - Can you see the time?
  ddjazz
  488

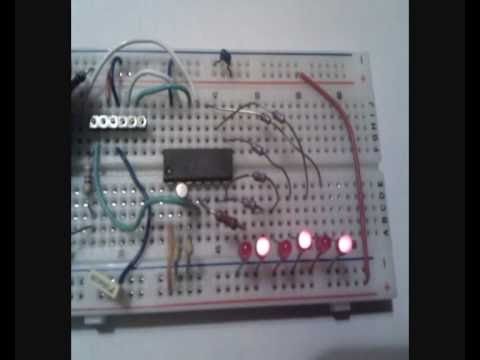

Schematic for a Binary watch with a small 14p PIC microcontroller. Also includes a button and ICSP header for in circuit programming. You can power this from a small battery. You might even use the SLEEP instruction to save power. The 32768 xt
